Test equipment
Bespoke and standard automated test equipment, engineered around your exact requirements.
Automated test equipment
When your components can’t afford to fail, your test equipment can’t either.
Red Earth Systems has over 30 years’ experience designing and manufacturing automated test equipment (ATE) across the aerospace, automotive, defence and oil & gas sectors. Our in-house team covers every discipline needed to deliver your solution, from initial concept through to a fully validated system.
We build ATE for complex components, PCB’s and Line Replaceable Units (LRUs), giving you the reliability and performance validation your programme depends on.
Our support doesn’t stop once your equipment leaves our facility. Our engineering and manufacturing teams remain on hand throughout its service life, backed by a genuinely cost-effective approach to test engineering.
-
Experience
30+ years in ATE
-
Support
Long-term, in-service
-
Delivery
On-time, on-site
-
Quality
ISO 9001 certified
Solutions built around your requirements
Every test programme is different, so our ATE solutions are built to match.
Our Generic LRU ATE Test System incorporates the test resources most commonly required in aerospace, while fully bespoke systems, complete with custom test schedulers and our Test Manager Software Suite, are built entirely around your specification.
We can also design automated multi-axis fixtures for testing units under test (UUTs), alongside robotic and co-bot equipment for production line applications.
Ancillary equipment, including interface boxes, test boxes and breakout boxes, completes the picture, so every element of your test system comes from one team, working to the same exacting standards.
Sarsen Technology is a supplier to Red Earth Systems. We have always found the Red Earth team to be expert in their field and an excellent company to work with.
Nigel Norman, Managing Director
Case study: Antenna Test System
We designed a test system to command and monitor antenna tuning units (UUTs) built for VHF/UHF tuneable antennas on military aircraft. The system generates a wide range of protocols and test stimuli, including non-standard signals for negative testing, while a vision system reads UUT status in real time.
Every card in the rack can be remotely upgraded via Ethernet or USB, keeping the system future-proofed long after deployment.

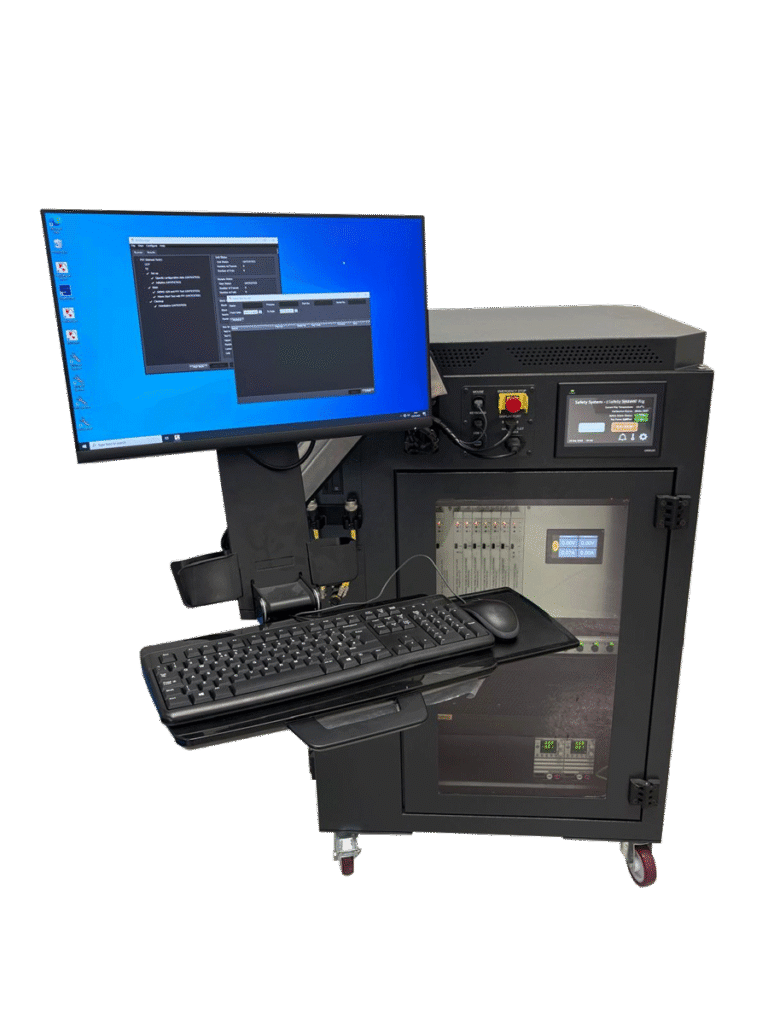

What’s included?
Every test system we build is backed by a full range of supporting equipment, designed and manufactured in-house alongside your ATE. Together, they form a complete, ready-to-deploy solution that includes the rig, with everything around it:
- Cables & harnesses
Custom-built UUT cables and harnesses, manufactured in-house to the same exacting standard as every other part of your test system.
- PCB assemblies
Fully assembled PCBs, with or without firmware and embedded software, built and tested under one roof from schematic through to final board.
- Mechanical fixtures & EGSE
Mechanical test fixtures and Electrical Ground Support Equipment, designed for reliable performance in the field as well as on the bench.
Let’s talk about your test programme
Every project starts with a conversation about your requirements. Tell us what you’re trying to achieve, and we’ll design a testing solution that fits, with a free written quote and draft project timetable to get you started.
